FPS
PERMA FPS

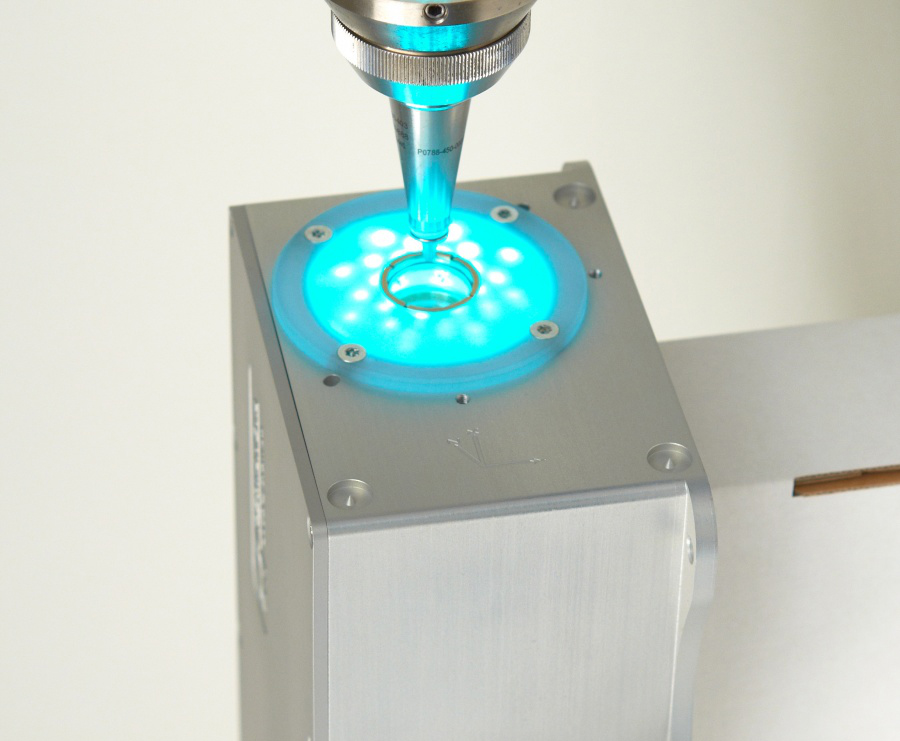

FPS Focus Position System: Online measurement of laser focus, online calibration of relative position of processing nozzle and laser spot, suitable for common laser processing tools.
FPS was developed as a focus position calibration device in terms of the invisibility of laser focus
? Could measure the relative position of laser focus and processing nozzle, assistant calibration of laser processing tools
? Real-time monitoring of the laser processing tool spot, calculate the relative position of laser spot and processing nozzle. The robot could optimize the working position by acquiring the calculated deviation
Type | FPS |
Wavelength | 900-1100nm |
Maximum power | 300W/30S |
Maximum input energy | 10KJ/5min |
NA of input laser beam | NA 0.06-0.12 |
Accuracy | ± 0.05 mm |
